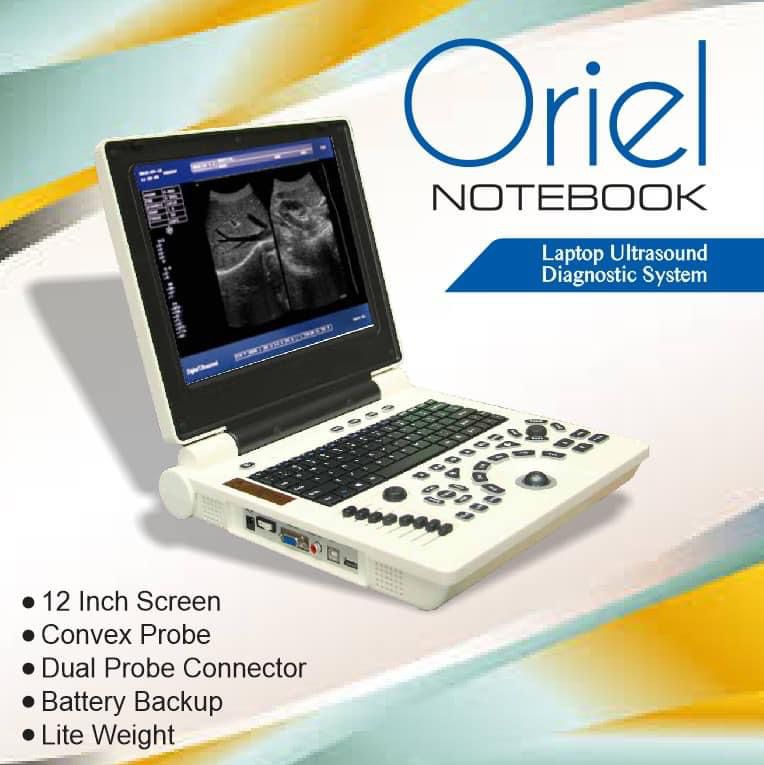

Ultrasound Machine – Laptop Ultrasonic Diagnostic System (Portable)

Product Overview

The Laptop Ultrasonic Diagnostic System is a high-definition, portable ultrasound machine designed for medical professionals, hospitals, and diagnostic centers seeking performance, portability, and precision.
Built with cutting-edge imaging technology, this system offers advanced diagnostic accuracy, real-time scanning capabilities, and a user-friendly laptop-style interface for comprehensive clinical applications — all in a lightweight, compact form.

It’s ideal for abdominal, obstetric, gynecological, urological, and small-part imaging applications, providing crystal-clear visuals and efficient data management for modern medical environments.

Key Features

1. High-Performance Imaging

• Equipped with a 12.1-inch HD LCD Display for superior clarity and wide viewing angles.

• Supports multiple imaging modes: B, B/B, 4B, B+M, and M.

• Incorporates advanced imaging technologies including:

  • High-precision dynamic focus imaging

  • Spatial and frequency compound imaging

  • Multi-beam formation technology for better depth and contrast

2. Smart & Portable Design

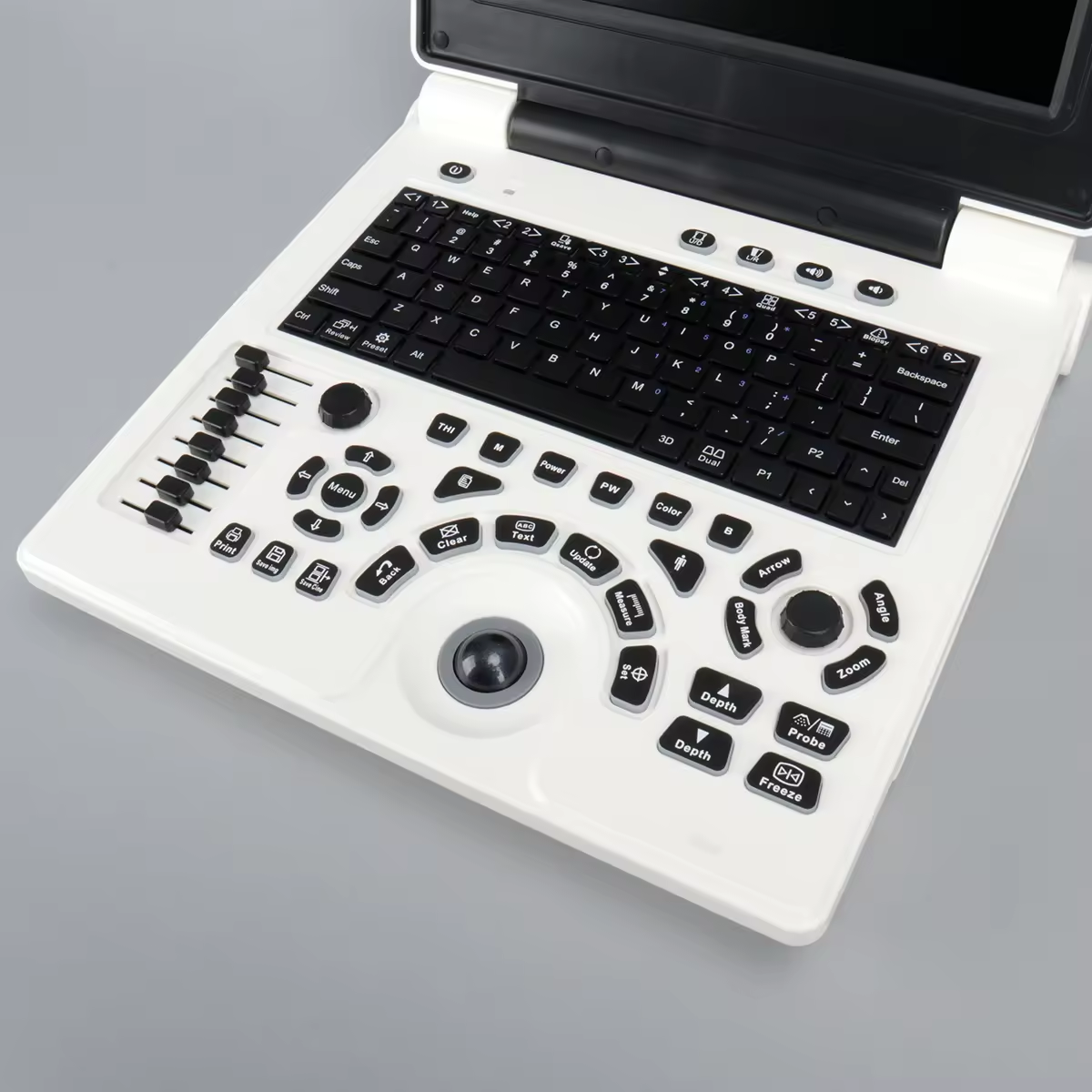

• Laptop-style design for convenient mobility and quick setup.

• Dual probe ports for easy switching between probes.

• Automatic probe identification system for seamless workflow.

• Lightweight at just 5.5 kg, perfect for clinics and field use.

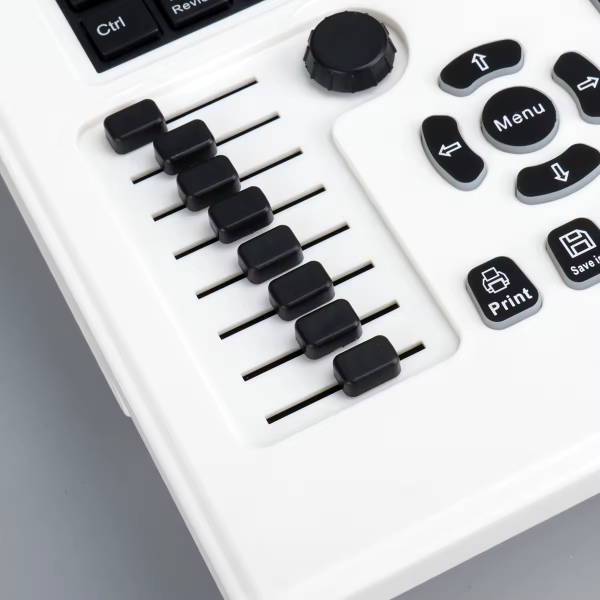

• Backlit keyboard-style control panel for quick and efficient operation, even in low-light environments.

3. Comprehensive Connectivity

• External interfaces: USB, PAL video, SVGA video output.

• Printer support: Compatible with Sony, Mitsubishi, and other thermal printers.

• Supports data transfer, storage, and direct printing of diagnostic reports.

• Includes 2 USB ports and video replay capability for seamless data handling.

4. Superior Data Management

• Cine loop capacity: Stores 256 consecutive real-time images.

• Permanent image storage: Up to 128 images saved for reference or reporting.

• Mass memory system with high-capacity video replay and permanent data retention.

• User-customizable parameters with auto-save and quick-boot presets.

5. Battery & Power Efficiency

• Built-in 11.1V 5200mAh Li-ion rechargeable battery for long-lasting mobile operation.

• Input power: AC 220V ±22V, 1.5A.

• Ensures uninterrupted workflow during patient examinations.

Advanced Imaging Specifications

Probe Compatibility

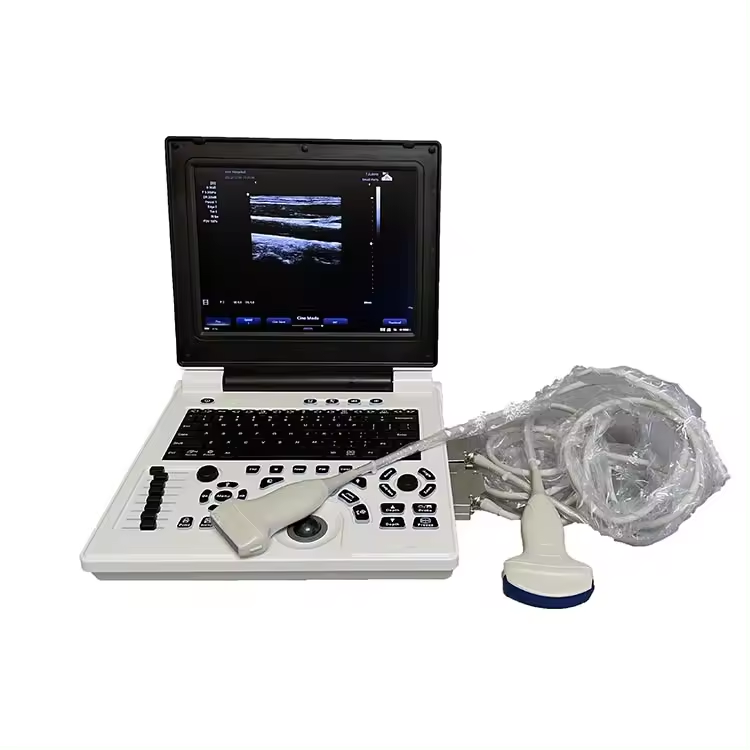

• Standard Included Probe:

  • 3.5 MHz Convex Array Probe (R60)

• Optional Probes:

  • 6.5 MHz Transvaginal Probe

  • 7.5 MHz Linear Probe

Package Contents

• 1 × Main Laptop Ultrasound Unit

• 1 × 3.5 MHz Convex Array Probe

• 1 × Power Adapter

• 1 × Rechargeable 11.1V 5200mAh Li-ion Battery

• 1 × USB Cable

• 1 × User Manual (English)

Applications

✅ Abdominal and Pelvic Scanning
✅ Gynecological and Obstetric Imaging
✅ Urology and Prostate Examinations
✅ Musculoskeletal and Vascular Studies
✅ General Medical Diagnostics

Summary

The Laptop Ultrasonic Diagnostic System (Portable) is a perfect combination of advanced imaging precision, mobility, and clinical reliability. With its dual-probe design, 12.1″ HD display, and built-in data management system, it empowers healthcare professionals to deliver faster, more accurate, and flexible diagnostic results — anywhere, anytime.
